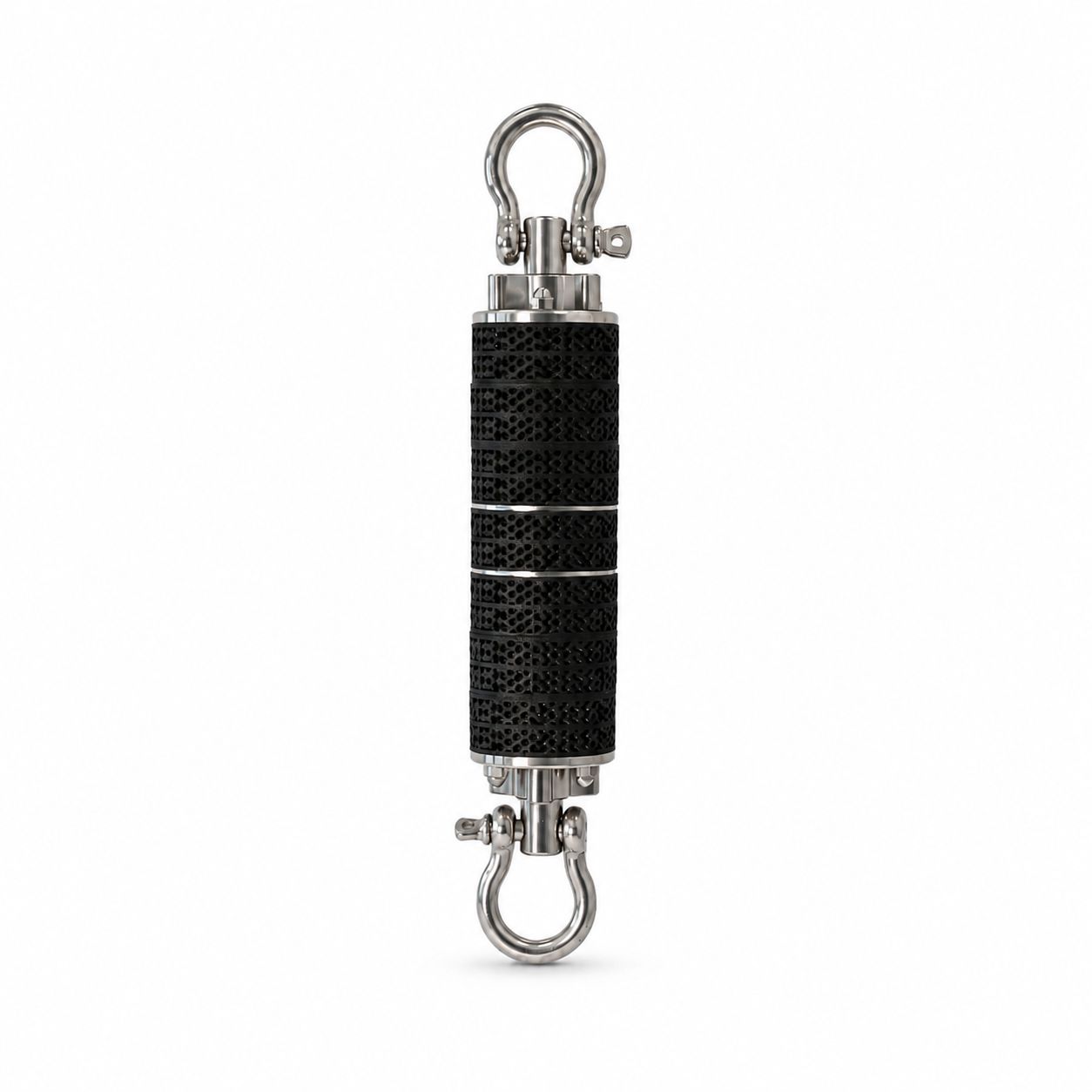

3Damper 60-L1 – Mooring shock absorber for boats up to 8 t

3Damper 60-L1 – Mooring shock absorber for boats up to 8 t

Greater comfort at the berth, reduced shock loads on the boat. 3Damper 60-L1 progressively absorbs loads transmitted through the mooring lines, reducing snatch, noise and peak loads on cleats, fairleads and mooring points.

Recommended application

Recommended for boats up to approximately 8 m, with an indicative displacement of up to 8 tonnes and up to Ø16 mm mooring lines. Final selection must also consider wind, waves, wash, exposure and the actual mooring arrangement.

Why choose 3Damper

• Progressive absorption: elastic travel reduces shock loads caused by boat movement.
• Axial operation: loads act along the damper axis without wrapping the mooring line.
• Marine-grade structure: AISI 316 stainless-steel metal components.
• Flexible installation: suitable for two-line installation or one line with two spliced eyes.

Key specifications

• Indicative maximum displacement: 8 t
• Recommended mooring lines: up to Ø16 mm
• Accessory connection: Ø10 mm shackle
• Tie rods: M6
• Structure: AISI 316 stainless steel

Before purchasing

Check boat length, displacement, mooring-line diameter and actual berth conditions. If in doubt, use the mooring-line configurator or contact Capmec Marine.

Technical note: stated displacement is a commercial guideline and does not replace an installation assessment. Always provide a suitable safety system and components compatible with expected loads.
